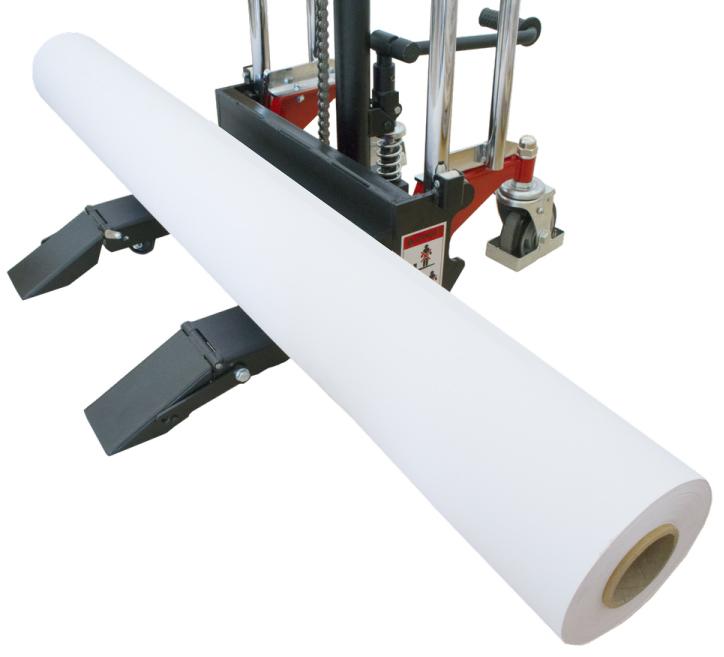

Manual Compact Roll Lifter

roll over the image to zoom in

Manual Compact Roll Lifter

Product Code: PHTICL
View video
reward points


A manual and compact roll lifter to assist mounting large and heavy rolls onto large format printers. This lifter works in quite a simple way, only by pressing the foot pedal you can easily lift rolls up to 500cm and 200kg.

Features & Benefits

  • Hydraulic, working by pressing the foot pedal
  • Lock ramps up to prevent roll from falling.
  • Multi directional wheels so you can go through standard doors
  • Rear wheels have breaks to make easy to roll the media up the ramp
  • The roll ramp can be stored in a upright position out of the way
  • The roll lifter takes up a floor space of 570mm x 650mm


  • Dimensions (H x L x W) - 161cm x 70cm x 61cm
  • Weight - 70kg
  • Lifts up to - 125cm
  • Loading capacity - 200kg
  • For rolls up to - 500cm
  • Max. roll Ø - 26cm
  • Wheels height - 8cm

Please click the Technical Information tab for more details.

In Stock - delivery in 1-2 working days.
