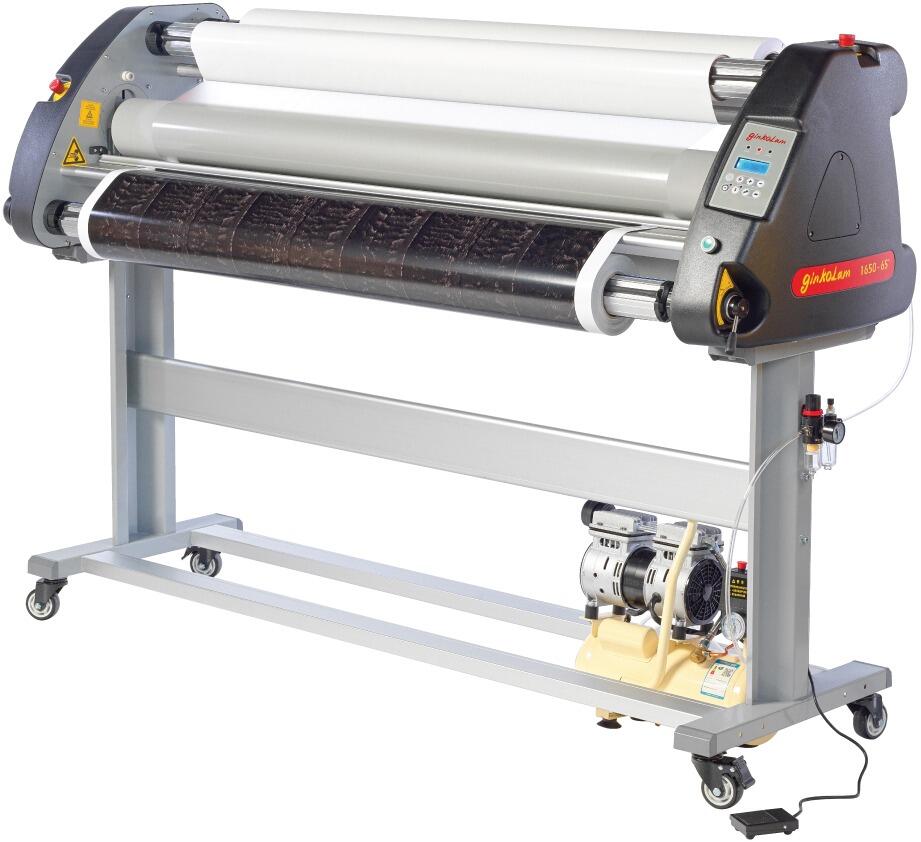

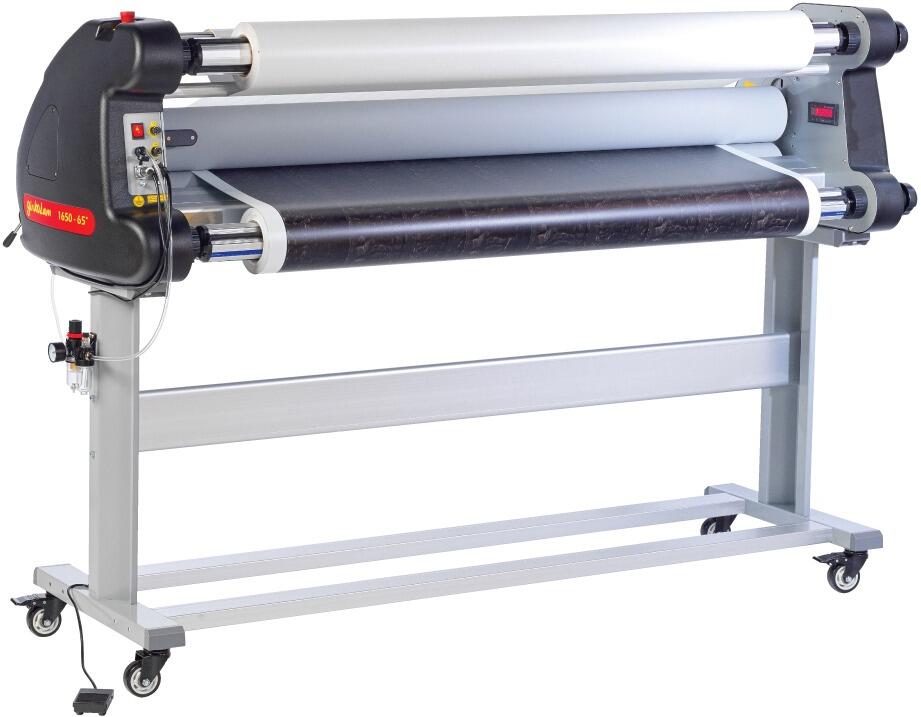

Kala GinkoLam 165cm Laminator

roll over the image to zoom in

Kala GinkoLam 165cm Laminator

Product Code: G1650103
£0.00
£3,945.00
Earn500
reward points
Add To Your Wishlist
An affordable, entry-level laminator. Perfect for any small, low to medium volume print shops and sign makers. it fulfils the essential needs for wide format print finishing on substrates up to 165cm wide and 45mm thick.
free-palletised-del.png* Palletised delivery included in the price. Free delivery for UK Mainland only.
Please contact us for lead times.

Features & Benefits

  • Complete solution including air compressor
  • Safety Tested by Apave Laboratory in France and CE compliant
  • Ergonomic 1m working height
  • User-friendly
  • Can be installed by the end-user, with no specialist training required

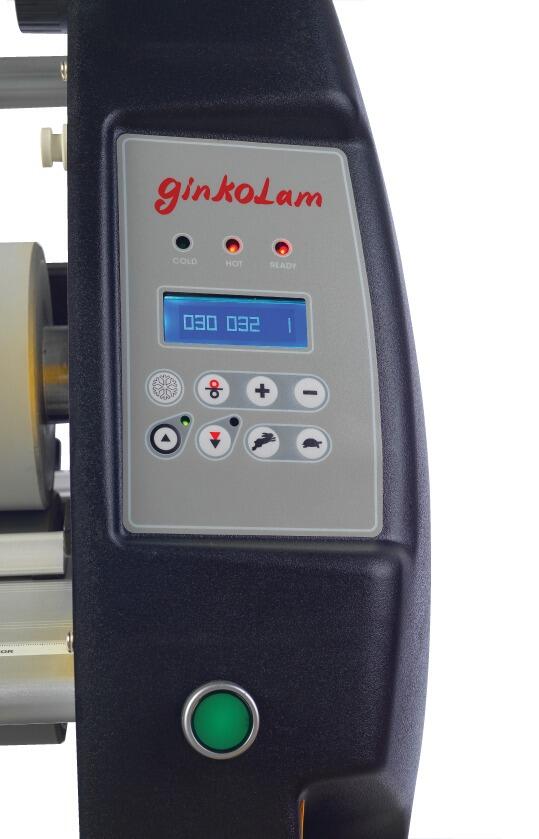

  • Easy to use control panel
  • Removable feeding guide
  • Adjustable roller tension

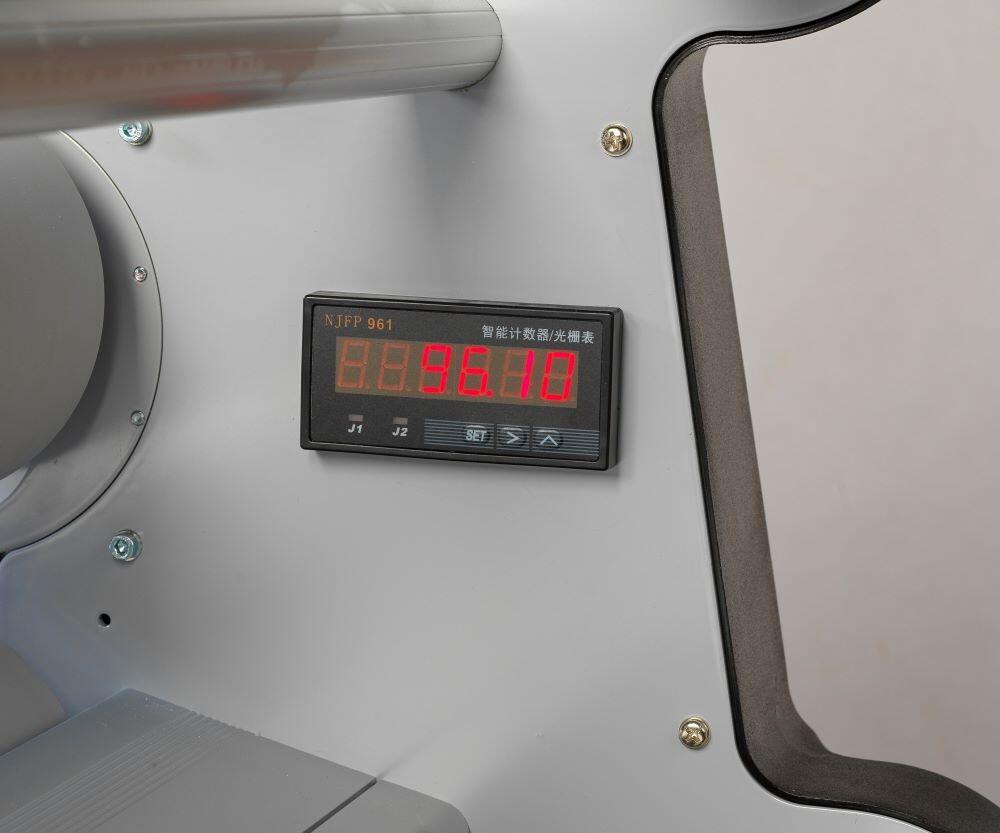

  • Liner media counter
  • Footswitch operation
  • Designed and manufactured in co-operation between Kala and an Asian manufacturer to produce a reliable, yet affordable product.

Specification

Maximum Media Thickness (Media & board)45mm
Maximum working width1600mm
Maximum width of laminating film200mm
Usable length of laminating media1650mm
Diameter of roller130mm
Temperature of heater rollerup to 60°C
Heating time from room temp to 40°C10 mins
No. of shafts included4
Speed1-5 m per minute
Power Usage230v - 50/60Hz - 2.5kW
Dimensions L x D x H CM202 x 58 x 126
Net Weight147kg
Shipping Dimensions L x D x H CM215 x 75 x 150
Warranty1 Year
Country of ManufactureChina
